TYE4 Series Low-Voltage High-Efficiency Permanent Magnet Synchronous Motors: The Perfect Combination of Excellent Energy Efficiency and Stable Operation

TYE4 Series Low Voltage High Efficiency Permanent Magnet Synchronous Motor: The Perfect Combination of Superior Energy Efficiency and Stable Operation

In the industrial power field, the TYE4 series of low-voltage, high-efficiency permanent magnet synchronous motors are being used for itsExcellent energy efficiency performance和Reliable operating characteristicsIt has become the preferred solution for energy-saving retrofits and power upgrades in various industries.

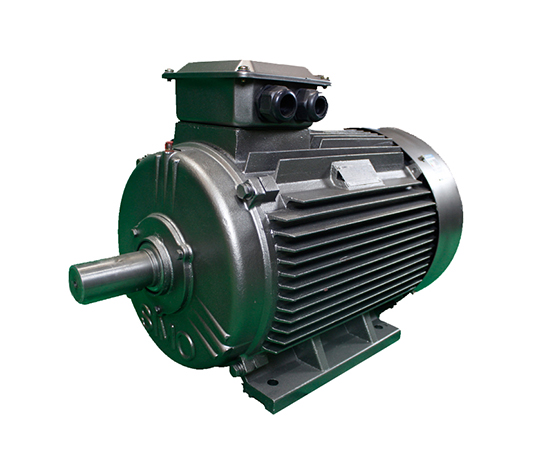

TYE4 Series Low Voltage High Efficiency Permanent Magnet Synchronous Motor是Simo motorsYears of experience in designing and manufacturingEnergy efficient power equipmentAdoptionAdvanced permanent magnet technology and precise manufacturing processpossessHigh efficiency, significant energy saving, reliable operation, long service lifeand other outstanding features. This series of motors strictly followJB/T 13297-2017Technical conditions of TYE4 series three-phase permanent magnet synchronous motors (Block No. 80-355) Technical specifications It provides reliable low voltage permanent magnet synchronous motor solutions for a wide range of industrial users.

I. Product overview and technical characteristics

1. Product profile

The TYE4 series of low-voltage, high-efficiency permanent magnet synchronous motors is Simo's response to theModern industry demands both energy consumption and reliabilityThe new permanent magnet motor developed by. This series of motorsThe center height of the machine base covers H80~H355mm，Power range 0.55kW~375kWThe power needs of different industrial scenarios can be met 。

As an upgraded product of traditional asynchronous motor, TYE4 series adoptpermanent magnet synchronous technologypossessExcellent electrical parameters, low noise, durability and easy maintenanceand other characteristicsThe series of motors are not only suitable for conventional working conditions, but also can be derived according to users' special requirements. This series of motors are not only applicable to conventional working conditions, but also can be derived according to the user's special needs, providingIP54, IP55 and other protection levels和IC411, IC416 and other cooling methodsAdaptable to a variety of complex work environments 。

2. Core technical characteristics

The TYE4 series of low-voltage, high-efficiency permanent magnet synchronous motors incorporate a number of innovative technologies and offer significant performance advantages:

Excellent energy efficiency features: AdoptionPermanent magnet rotor designThe motors in the25%-120% load rangeAll of them keep high efficiency operation, compared with the same specification asynchronous motor has the following advantagesWider economic operating range和Significant energy savings
Excellent runtime performance: Has the followingLow noise, low vibration, low temperature riseThe characteristics of theGood constant torque operation at low speedsWide speed range and ultra-high efficiency over the full speed range.
Good compatibility: Installation dimensions for each seat number are the same asye2, yx3, ye3, ye4etc. series of induction motors are consistent, good alternative, in line with the IEC and national standards, convenient for customers to install and use

Technical parameters and performance indicators

The TYE4 series of low-voltage, high-efficiency permanent magnet synchronous motors cover a wide range of technical specifications to meet the power needs of different industrial scenarios:

Main technical parameters

parameter category	Technical specifications and performance indicators
Seat number range	H80~H355
rating	0.55kW～375kW
rated voltage	380V
Rated frequency	50Hz
Polar range	Covering a wide range of poles to meet different speed requirements
protection class	IP54, IP55 (on request)
Insulation class	F
Cooling method	IC411/IC416 (≥55kW, 3000rpm)
work system	S1 (continuous duty)
Efficiency ratings	GB30253-2013 Grade 1 energy efficiency
Installation	IMB3, IMB35 and other standard mounting methods

Description of performance characteristics

TYE4 series motors inElectromagnetic design, structural strength and thermal performanceAll aspects have been fully optimized:

Wide and efficient operating range: Motors in25%-120% Load RangeMaintains high efficiency in comparison to conventional motors within theSignificant efficiency gainsEnergy saving is obvious
high power factor: The permanent magnet synchronous design gives the motor ahigh power factorReduce reactive power losses and improve grid quality.
Excellent starting performance: Motor Rotor BeltCAGE STARTING WINDINGSIt has the starting performance of an asynchronous motor and can start under load at working frequency without a frequency converter.

III. Structural design and configuration

1. Motor body structure

TYE4 series low-voltage high-efficiency permanent magnet synchronous motor adopts theModular design conceptEach component is carefully designed and optimized:

Rotor design: AdoptionHigh-performance permanent magnetsAs a rotor magnetic field source, no excitation current is required, and high operating efficiency is achieved. Rotor withCAGE STARTING WINDINGSTo make the motor capable of asynchronous starting
Stator structure: The stator winding is made ofClass F insulation systemThe insulation is reliable and has a long life. Stator design optimized for compatibility with common asynchronous motors for easy replacement
cooling system: Depending on the power and speed, theFan-cooled (IC411) 或Independent fan cooling (IC416)The motor is designed to ensure that the motor remains at the right temperature under all load conditions.

2. Extended functionality configuration

The TYE4 series motors offer a wealth of options for extended functionality to meet the specific needs of users:

Multiple cooling methods: Optional depending on the application environmentSelf-cooling (IC411) 或Forced cooling (IC416) Various cooling methods
Flexible protection classes: ProvidedIP54, IP55A variety of protection levels, such as to adapt to different working environments
Versatile mounting options: SupportIMB3, IMB35Various mounting methods to meet the installation needs of different equipment.

IV. Application areas and scenarios

TYE4 series low-voltage high-efficiency permanent magnet synchronous motors are widely used in many industrial fields due to their reliable performance and high efficiency and energy-saving features:

1. General industrial areas

Fan equipment: Applicable toBlowers, ventilatorsand other equipment, providing efficient power solutions
Water pump system: Used to drive all types ofIndustrial water pumps, circulating water pumpsMeet the needs of the water supply and drainage system
transmission mechanism: Applied toBelt presses, conveyorsMaterial handling equipment

2. Manufacturing and processing industries

Machine Tools: for all types ofMachine spindle drivesProvides stable power output
Light Industrial Machinery: Applicable toPackaging Machinery, Food MachineryLight industrial equipment

3. Special application scenarios

TYE4 series motors can also perform well in some special applications due to their excellent performance:

Wide speed range requiredOccasions: Used with frequency converter, it can realize efficient speed regulation operation in a wide range.
High starting torqueRequired equipment: good starting characteristics, can meet the starting needs of a variety of equipment

V. Product Advantages and Values

1. Energy efficiency benefits

TYE4 series low-voltage high-efficiency permanent magnet synchronous motor has significant economic benefits:

Reduced operating costs: High-efficiency design can beSignificant reduction in energy consumptionShorten the payback period. Maintains high efficiency over the 25%-120% load range.
Optimization of power factor: Permanent magnet synchronous motors havehigh power factorReduced investment in reactive power compensation equipment and improved grid quality
Low life cycle costs: Although the initial investment is slightly higher, theEnergy saving benefits during operationDramatic reductions in total life cycle costs

2. Operational reliability

TYE4 series motors offer significant advantages in terms of reliability:

Rugged structural design: AdoptionOptimized mechanical structureThe product is designed to withstand mechanical and thermal stresses under a variety of operating conditions.
Simple rotor construction: Permanent magnet rotorNo guide bar, no slip ringSimple and reliable structure, low maintenance
Strict quality control: Quality control from raw materials to finished products to ensure that each motor meets the standard requirements.

3. Ease of maintenance

This series of motors has been designed with ease of maintenance in mind:

Easy replacement installation: Installation dimensions are the same asye2, yx3, ye3, ye4Induction motors of the same series, good substitutability
modular design: Modularized design of key components to reduce maintenance difficulties and spare parts inventory
Long life design: AdoptionClass F insulation systemLong design life, long maintenance intervals

VI. Installation and use guide

1. Installation environmental requirements

TYE4 series low-voltage high-efficiency permanent magnet synchronous motors have clear requirements for the installation environment:

environmental conditions: For use in conventional industrial environments
Applicable places: Indoor or outdoor, non-hazardous gas environments
Specialized environmental adaptation: For special environmental conditions, customized designs can be provided to meet requirements

2. Installation and commissioning

Correct installation and commissioning is the key to ensure the normal operation of the motor:

basic requirement: RequiredStrong and level foundationThe motor is designed to withstand the weight of the motor and the mechanical stresses of operation.
alignment requirements: When the motor and driven machinery are connected by couplings, it must be ensured thatPrecise alignmentAvoidance of additional forces
electrical connection: Follow the motor nameplate and wiring diagram for proper wiring to ensure thatreliable grounding

VII. Services and technical support

1. Quality assurance systems

Simo Motor has established a perfect quality assurance system to ensure the excellent quality of TYE4 series low-voltage high-efficiency permanent magnet synchronous motors:

standards compliance: The products strictly follow theJB/T 13297-2017industry standard
Strict testing process: In the manufacturing process afterMultiple rigorous testsEnsure that the performance of the product meets the requirements of the standard
Comprehensive performance testing: Each motor isRigorous factory testingIncludes no-load test, load test and insulation withstand voltage test.

2. After-sales service commitments

Simo motors provide customers with comprehensive after-sales service guarantee:

rapid response: Customers who find quality problems in the course of use, upon notification of theTimely responseIf on-site service is requiredquick start
Professional Support: Maintenance personnel will not be withdrawn until the fault is eliminated to ensure that the equipment is returned to normal operation
Lifetime Service: Once a Simo motor product is soldLifetime Cost WarrantyProvide long-term technical support to customers

The TYE4 series of low-voltage, high-efficiency permanent magnet synchronous motors are characterized by theirExcellent technical performance、Highly efficient energy-saving features和Reliable operational performanceIt has become the industrial powerhouse of thePreferred Solution. Simo motors are available throughContinuous technological innovation和Strict quality controlTo ensure that every TYE4 series low-voltage, high-efficiency permanent magnet synchronous motor isHarsh industrial environmentssubscribeStable and efficientThe power of the support.

Choosing Simo's TYE4 series of low-voltage, high-efficiency permanent magnet synchronous motors is choosing theReliable equipment performance和Complete technical servicesWe are looking forward to cooperating with you. We are looking forward to cooperating with you to jointly promote the progress and development of energy-saving technology in the industrial field.
