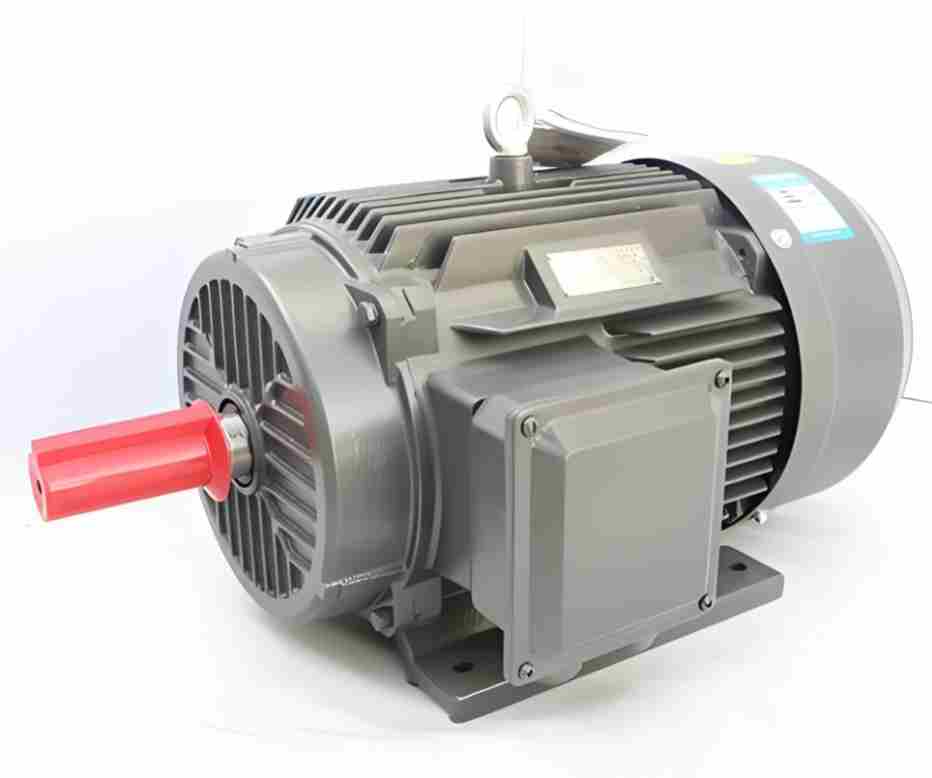

Sigma Motor YE5 Series Super High Efficiency Three-Phase Asynchronous Motors (Class I Energy Efficiency Motors)

西玛YE5系列超高效三相异步电动机(一级能效电机)

西玛YE5系列超高效三相异步电动机是面向工业、建筑、机械及通用设备的顶级高性能电机系列,符合一级能效标准,采用先进电磁设计与优化机械结构,实现超高效率、极低能耗、低噪音和长期稳定运行。该系列电机是YE4系列升级产品,专为节能改造、高效驱动和工业升级需求而设计。

电机结构坚固耐用,采用优质钢材与高性能绕组材料,优化冷却与绝缘系统,保证长期高负载运行下温升低、寿命长。提供多种功率等级、转速及安装形式,可广泛适用于工业生产线、泵、风机、压缩机及通用设备的高效驱动需求。

  • 超高效设计,符合一级能效标准

  • 高稳定性,低噪音、低振动运行

  • 优化冷却与绝缘系统,提高耐久性

  • Multiple power ratings, speeds and mounting options available

  • 适用于泵、风机、压缩机及工业生产线

广泛应用于:工业生产线、泵、风机、压缩机、输送机械及各类高效驱动工业设备。

safe and reliable
well-made
Customized design
quality assurance (QA)
Online MessageAdd WeChatWeChat
  • Details
  • Service
  • Brand advantage
  • Contact Us

Excerpt:

西安泰富西玛电机生产的YE5系列超高效三相异步电动机具有性能优良、高效、节能,温升裕度大,寿命长,性能好,振动 小,启动性能优良,外形美观,可靠性能高的优点。常用于驱动水泵、风机、压缩机、传送机和……

西安泰富西玛YE5系列超高效three-phase asynchronous motor专业指南

符合国家一级能效标准,达到IE5能效等级的绿色动力解决方案

西安泰富西玛YE5系列超高效三相异步电动机是新一代超高效节能电动机的杰出代表,集卓越的能效表现Reliable operational performance广泛的环境适应性于一体。该系列产品全面达到国家GB18613-2020一级能效标准,符合国际IEC60034-30标准中的IE5能效等级,为工业领域提供绿色环保的优质动力选择,助力企业实现节能降耗目标。

Product Model Analysis: Accurately Identify Motor Specifications

西安泰富西玛YE5系列超高效三相异步电动机采用标准化命名规则,以YE5-132S2-2为例进行详细说明:

完整型号结构

  • "Y"类型:异步电动机
  • "E5"能效:IE5超超高效率等级
  • "132"尺寸:机座中心高132mm
  • "S"长度:机座长度规格代号
  • "2"铁芯:铁芯长度规格代号
  • "2"极数:电动机极数为2极

The naming system strictly follows国家GB/T 4831标准The same time, it meets the requirements of the国际电工委员会IEC标准,确保产品规格的准确识别和国际化兼容。

产品概述:技术领先的超高效动力解决方案

能效标准与技术特性

YE5系列超高效三相异步电动机是符合全球最高能效标准的低压全封闭自扇冷式鼠笼型三相异步电动机。该系列产品在能效表现方面具有以下突出特点:

能效等级达标

  • 效率达到国际标准IEC 60034-30《单速三相笼型感应电动机效率分级》最新版本中的IE5效率要求
  • 效率值完全符合GB18613-2020《中小型三相异步电动机能效限定值及能效等级》中的1级能效要求
  • 已通过中国节能产品认证,并进行能效备案

安装标准与结构特性

安装兼容性

  • 安装尺寸和功率等级符合IEC国际标准
  • 德国DIN42673标准完全一致
  • 外壳防护等级达到IP55
  • 冷却方式采用IC411
  • 工作制式为连续工作制(S1)

绝缘与温升控制

  • adoptionF级绝缘材料系统,按B级绝缘考核(80K)
  • 全系列产品温升按B级考核,预留充足安全裕度
  • 严格的负载噪声考核标准,振动低

电气参数与配置

额定参数

  • 额定电压:380V
  • 额定频率:50Hz
  • 功率范围:0.75-375kW
  • 极数配置:2极、4极、6极、8极

技术标准符合:严格遵循《YE5系列(IP55)超高效三相异步电动机技术条件》要求

创新结构与技术特点

Optimized electromagnetic design

YE5系列电动机采用创新的电磁优化设计优质材料应用,实现了显著的节能效果:

材料优化

  • adoption高强度铸铁结构和高导磁性能的低损耗硅钢片
  • utilization高纯度的铜质电磁线等优质材料
  • 优化的定转子槽配合,减少杂散损耗

能效提升数据

  • YE4系列相应规格效率进一步提高
  • 50-100%负荷范围内保持平坦的效率特性
  • 以4极160kW电动机为例,与Y2电动机相比,每年可节电约3万度

轴承系统优化设计

全系列轴承配置

  • H80-H355机座号全面覆盖
  • 合理的轴承选型与装配工艺
  • 优化的润滑系统,延长使用寿命

灵活的出线系统

多功能接线盒设计

  • 标准配置满足不同安装环境需求
  • 良好的密封性能,适应多种应用场合
  • 便于用户根据现场情况灵活安排布线

防护与散热系统

  • IP55防护等级:有效防止灰尘和水滴侵入
  • IC411冷却方式:全封闭自扇冷却,散热效果优良
  • 高强度铸铁结构:确保机械强度和耐久性

卓越的产品优势与核心价值

超高效节能特性

YE5系列电动机通过先进的设计理念Precision Manufacturing Process,实现了出色的能源利用效率

节能经济效益

  • 显著降低运行能耗成本
  • 缩短投资回收周期
  • 符合国家节能减排和"双碳"政策导向

环境适应性与可靠性

宽环境适应性

  • 环境温度:-15℃至+40℃
  • 海拔高度:不超过1000米
  • 防护等级:IP55,可用于含尘或潮湿环境

卓越的可靠性

  • F级绝缘B级考核,延长使用寿命
  • 优质轴承和精密制造,确保长期稳定运行
  • 低振动、低噪声设计,改善工作环境
  • 温升裕度大,提高可靠性

Wide range of applications

YE5系列超高效电动机凭借其优异的性能表现可靠的运行特性,广泛应用于国民经济的各个领域

主要应用场景

  • 通用工业设备:机床、水泵、风机、压缩机
  • 物料输送系统:运输机、传送装置
  • 加工制造设备:造纸机械、搅拌机械、印刷设备
  • 农业机械设备:农机水利等各类农机装备
  • 特殊行业应用:石油、化工、医药、矿山及其他特殊环境

产品替换兼容性:本系列产品能够完全取代Y、YGM、YGM2、YE2、YE3、YE4系列低压三相异步电动机

严格的使用条件与环境要求

基础环境参数

  1. 海拔高度:运行地点海拔不超过1000米
  2. 温度范围:环境空气温度-15℃至+40℃
  3. 工作制式:连续工作制(S1)设计

电气参数要求

  1. 电源特性
    • rated voltage380V或660V
    • Rated frequency50Hz
    • 电压允许波动范围:±5%
    • 频率允许波动范围:±1%
  2. 传动方式:推荐采用联轴器传动,也可用正齿轮及皮带轮传动
  3. protection class:外壳防护等级IP55
  4. cooling system:冷却方式为IC411

Xi'an TaifuSimo motors质量保障体系

Enterprise professional and technical strength

西安泰富西玛电机(集团)股份有限公司作为国内电机行业的骨干企业,建立了完整的电机研发制造体系。公司集电机设计制造、电气控制系统、精密机械加工、模具开发制造于一体,为各行业提供高效可靠的动力解决方案

权威认证与质量荣誉

  • 管理体系认证:ISO9001质量管理体系
  • 产品安全认证:欧洲CE认证、中国强制性CCC认证
  • 节能认证:获得中国质量认证中心颁发的"中国节能产品认证证书"
  • 行业地位:中国机械行业500强
  • 质量荣誉:质量信誉AAA等级企业

Strict Quality Commitment

  1. Standards implementation:严格执行国家和行业标准,不合格产品绝不出厂
  2. 全面测试:严格的出厂测试,确保产品可靠性
  3. On-time delivery:严格按期交货,特殊情况优先安排
  4. rapid response:专业的技术咨询和售后服务
  5. 完善售后:产品质量问题三包服务,提供终身技术支持

Professional Selection and Ordering Guide

选型注意事项

传动限制说明

  • 5.5kW及以上2极电动机禁止使用皮带传动
  • 37kW及以上4极电动机禁止使用皮带传动
  • 推荐采用联轴器等直接传动方式

默认配置参数

  • 安装方式:卧式B3
  • 绝缘等级:F级(按B级考核温升)
  • 防护等级:IP55

Technical requirements for ordering

标准订货信息

  • 电动机具体型号和规格
  • 额定功率和转速要求
  • 电压等级和频率参数
  • 安装结构形式要求
  • 噪声等级要求(未注明按2级供货)

特殊配置需求

  • 双轴伸结构配置
  • 出线盒反盒布置
  • 转轴逆向旋转
  • 湿热带型或户外防腐型
  • 其他特殊技术要求

所有特殊需求需在订货合同中明确注明,并提前与工厂技术部门沟通确认。

应用价值与经济效益

长期运行成本优势

YE5系列高效电机通过优异的能效表现为用户创造显著的经济效益:

能耗节约

  • 显著降低电力消耗成本
  • 减少能源浪费
  • 提升设备运行经济性

维护效益

  • 减少维护频次
  • 延长使用寿命
  • 降低总体拥有成本

环境效益与社会价值

绿色环保

  • 减少碳排放,符合国家"双碳"战略
  • 满足环保政策要求
  • 提升企业绿色形象

concluding remarks

西安泰富西玛YE5系列超高效三相异步电动机凭借其卓越的能效表现Reliable product quality广泛的应用适应性,已成为工业领域节能改造和设备升级的理想选择。西玛电机依托雄厚的技术实力完善的服务体系,为每位客户提供Professional technical supportReliable after-sales protection

如需详细了解YE5系列超高效电机的技术特性或获取专业选型建议,欢迎联系西玛电机专业技术团队,我们将为您提供全方位的技术服务和节能解决方案
