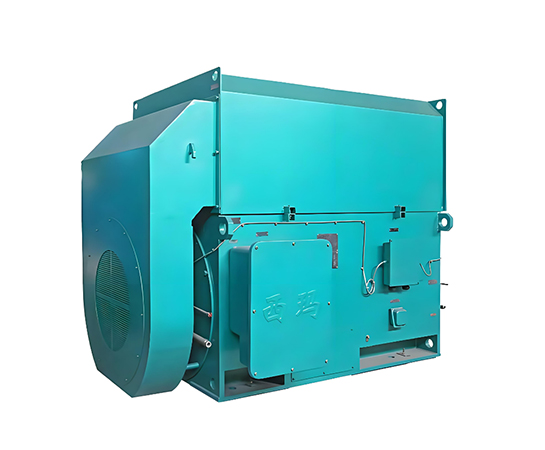

TYCKK Series High-Efficiency High-Voltage Permanent Magnet Synchronous Motors: The Perfect Combination of Outstanding Energy Efficiency and Reliable Operation

TYCKK Series High-Efficiency High-Voltage Permanent Magnet Synchronous Motors: The Perfect Combination of Outstanding Energy Efficiency and Reliable Operation

In the industrial power sector, the TYCKK series of high-efficiency, high-voltage permanent magnet synchronous motors is gaining traction with itsExcellent energy efficiency performance和Reliable operating characteristicsIt has become the preferred solution for energy-saving retrofits and power upgrades in various industries.

TYCKK Series High Efficiency High Voltage Permanent Magnet Synchronous Motor是Simo motorsYears of experience in designing and manufacturingEnergy efficient power equipmentAdoptionAdvanced permanent magnet technology and precise manufacturing processpossessHigh efficiency, high power factor, significant energy savings, reliable operation, long service lifeand other outstanding features. This series of motors strictly followJB/T 12681-2016Technical Specifications for TYCKK Series (IP44) High-Efficiency High-Voltage Permanent Magnet Synchronous Motorsprovides reliable high-voltage permanent magnet synchronous motor solutions for industrial users.

I. Product overview and technical characteristics

1. Product profile

The TYCKK series high-efficiency high-voltage permanent magnet synchronous motors are designed by Simo Motors forModern industry demands both energy consumption and reliabilityThe newly developed high-voltage electric motor. This series of motors adoptspermanent magnet synchronous technologypossessExcellent electrical parameters, low noise, durability and easy maintenanceand other characteristics.

This series of motors complies withIP44 protection ratingApplicable to general-purpose self-starting conditions. All derivative motor series within this series may also be implemented accordingly.This demonstrates the versatility and scalability of its design.

2. Core technical characteristics

The TYCKK series high-efficiency permanent magnet synchronous motors integrate multiple innovative technologies and offer significant performance advantages:

Excellent energy efficiency features: AdoptionPermanent magnet rotor designSignificantly improved motor efficiency, offering advantages over traditional asynchronous motors.Wider economic operating range和Significant energy savings
Excellent electrical properties: Has the followingHigh power factor, low temperature rise, safe and reliable operationThese advantages effectively enhance the power factor of the grid and fully leverage the capacity of the existing grid.
Robust mechanical constructionThe motor adoptsOptimized structural design，Low vibration, long service life, easy installation and maintenancecapable of withstanding mechanical stresses under various operating conditions

Technical parameters and performance indicators

The TYCKK series of high-efficiency permanent magnet synchronous motors covers a wide range of technical specifications to meet the power requirements of diverse industrial applications:

Main technical parameters

parameter category	Technical specifications and performance indicators
protection class	IP44 (Standard Type)
Insulation class	F
Working Method	S1 (continuous duty)
Efficiency ratings	high efficiency
Cooling method	IC Series

Description of performance characteristics

TYCKK Series Motors inElectromagnetic design, structural strength and thermal performanceAll aspects have been fully optimized:

Broad economic operating range：Maintains high efficiency and power factor across a wide load range.
high power factor: The permanent magnet synchronous design gives the motor ahigh power factorReduce reactive power losses and improve grid quality.
Low vibration and low noise: ByPrecision Dynamic Balancing Calibration和Optimized structural designThe motor runs smoothly with significantly reduced noise.

III. Structural design and configuration

1. Motor body structure

The TYCKK series high-efficiency high-voltage permanent magnet synchronous motors adoptInnovative Design PhilosophyEach component is carefully designed and optimized:

Permanent magnet rotor designThe air gap magnetic field is generated by the rotor-mountedRare Earth Permanent Magnet MaterialsPermanent magnet materials offer superior magnetic properties, enabling increased power density.
Stator structure: The stator winding is made ofClass F insulation systemReliable insulation and long life
Protective Design: Enclosure protection ratingIP44effectively prevents dust, moisture, and other contaminants from entering the motor interior

2. Extended functionality configuration

The TYCKK series motors offer a wide range of expansion options to meet users' specific requirements:

Multiple cooling methodsDifferent cooling methods can be selected based on the application environment.
Flexible protection classesOther protection ratings beyond IP44 are available to accommodate different working environments.
Versatile mounting optionsSupports multiple installation methods to meet the installation needs of different devices.

IV. Application areas and scenarios

The TYCKK series of high-efficiency permanent magnet synchronous motors, renowned for their reliable performance and energy-saving characteristics, are widely applied across numerous industrial sectors:

1. Heavy industry

Electric Power Industry: Applied toPower Plant Auxiliary Equipment、Water pump systemproviding stable power support
Petrochemical Industry: for drivingCompressors and Pump EquipmentAdapted to the continuous production characteristics of the petrochemical industry
Mining and Metallurgical Industry: Specifically designed forCrusher, Coal Mill, WinchHeavy-duty equipment, such as heavy-duty equipment, to withstand harsh working conditions

2. General industrial areas

Fan equipment: Applicable toBlowers, ventilatorsand other equipment, providing efficient power solutions
Water pump system: Used to drive all types ofIndustrial water pumps, circulating water pumpsMeet the needs of the water supply and drainage system
transmission mechanism: Applied toBelt presses, conveyorsMaterial handling equipment

3. Special application scenarios

The TYCKK series motors can also provide customized solutions tailored to specific environmental requirements:

High-humidity environmentThrough special protective treatment and insulation design, it is suitable for humid environments.
Dust-laden environments: Employ appropriate protective structures to prevent dust from entering the motor interior.
high temperature environmentOptimize the cooling system to ensure stable operation in high-temperature environments.

V. Product Advantages and Values

1. Energy efficiency benefits

The TYCKK series high-efficiency permanent magnet synchronous motors deliver significant economic benefits:

Reduced operating costs: High-efficiency design can beSignificant reduction in energy consumptionReduced payback period
Optimization of power factor: Permanent magnet synchronous motors havehigh power factorReduced investment in reactive power compensation equipment and improved grid quality
Low life cycle costs: Although the initial investment is slightly higher, theEnergy saving benefits during operationDramatic reductions in total life cycle costs

2. Operational reliability

The TYCKK series motors offer distinct advantages in reliability:

Rugged structural design: AdoptionOptimized mechanical structureThe product is designed to withstand mechanical and thermal stresses under a variety of operating conditions.
Simple rotor construction: Permanent magnet rotorNo guide bar, no slip ringSimple and reliable structure, low maintenance
Strict quality controlFull-process quality control from raw materials to finished products ensures every motor meets specifications.JB/T 12681-2016Standard Requirements

3. Ease of maintenance

This series of motors has been designed with ease of maintenance in mind:

modular design: Modularized design of key components to reduce maintenance difficulties and spare parts inventory
Easily accessible structureRational structural design makes routine inspection, maintenance and overhaul work more convenient.
Long life design: AdoptionClass F insulation systemLong design life, long maintenance intervals

VI. Installation and use guide

1. Installation environmental requirements

The TYCKK series of high-efficiency permanent magnet synchronous motors have specific requirements for the installation environment:

environmental conditions: For use in conventional industrial environments
Applicable placesWidely used inPower, Cement, Mining, Metallurgy, Chemical Industryacross various industries
Specialized environmental adaptation: For special environmental conditions, customized designs can be provided to meet requirements

2. Installation and commissioning

Correct installation and commissioning is the key to ensure the normal operation of the motor:

basic requirement: RequiredStrong and level foundationThe motor is designed to withstand the weight of the motor and the mechanical stresses of operation.
alignment requirements: When the motor and driven machinery are connected by couplings, it must be ensured thatPrecise alignmentAvoidance of additional forces
electrical connection: Follow the motor nameplate and wiring diagram for proper wiring to ensure thatreliable grounding

VII. Services and technical support

1. Quality assurance systems

Simo Electric has established a comprehensive quality assurance system to ensure the exceptional quality of its TYCKK series high-efficiency permanent magnet synchronous motors:

standards compliance: The products strictly follow theJB/T 12681-2016industry standard
Strict testing process: In the manufacturing process afterMultiple rigorous testsEnsure that the performance of the product meets the requirements of the standard
Comprehensive performance testing: Each motor isRigorous factory testingIncludes no-load test, load test and insulation withstand voltage test.

2. After-sales service commitments

Simo motors provide customers with comprehensive after-sales service guarantee:

rapid response: Customers who find quality problems in the course of use, upon notification of theTimely responseIf on-site service is requiredquick start
Professional Support: Maintenance personnel will not be withdrawn until the fault is eliminated to ensure that the equipment is returned to normal operation
Ongoing services: Provide customers with long-term technical support and service guarantee

The TYCKK series high-efficiency permanent magnet synchronous motors, with theirExcellent technical performance、Highly efficient energy-saving features和Reliable operational performanceIt has become the industrial powerhouse of thePreferred Solution. Simo motors are available throughContinuous technological innovation和Strict quality controlEnsure that every TYCKK series high-efficiency permanent magnet synchronous motor can operate atHarsh industrial environmentssubscribeStable and efficientThe power of the support.

Choosing the Simo TYCKK series high-efficiency permanent magnet synchronous motors means choosingReliable equipment performance和Complete technical servicesWe are looking forward to cooperating with you. We are looking forward to cooperating with you to jointly promote the progress and development of energy-saving technology in the industrial field.

Simo motorsAfter-sales service policy: quality-oriented, the user first!

Sincere, intimate, and devoted, Simo will always be attentive.

preamble

Thank you for choosing Simo Motor products. As an enterprise with many years of experience in motor manufacturing, Simo Motor always insists on “Quality oriented, customer first”For the purpose, through the perfect service system, to ensure that every customer can enjoy efficient and professional after-sales service.

Our products have been awarded the honorary titles of “High Quality Products”, “China Famous Brand Products”, “National Inspection-free Products” and “China Well-known Trademark” for many times by provinces, cities and ministries. Famous Trademark" honorary title. In order to further enhance customer experience, we have formulated this after-sales service policy, aiming to provide customers with comprehensive, fast and satisfactory service guarantee.

I. Quality Assurance Commitments

Simo Motor implements comprehensive quality control in strict accordance with international standards, national standards, machinery industry standards and enterprise standards:

All products are listed in the “GB/T 19001-2008/ISO 9001:2008 quality management system”Production is carried out under effective operation to ensure that raw materials are strictly and perfectly inspected from the time they enter the factory to the time the products leave the factory.
Commitment that all products offered areNew and unusedand meets the quality requirements specified in the user's contract.
Adhere to the quality management system in accordance with “GB/T 19001-2000 idt ISO 9001:2000 standard”, and keep the quality management system running effectively.

Second, pre-sale service content

To help customers make the best choice, Simo Motors offers comprehensive pre-sales support:

Specialized technical consulting: Receive inquiries from customers about the business and technical aspects of motors, and answer all kinds of questions from customers.
Personalized Solutions: Objectively introduce the performance and characteristics of Simo's motor products and provide customized power solutions according to customer needs.
Comprehensive product information: Provide detailed quotations, drawings and motor samples and other information to help customers fully understand the characteristics of the product.

III. Ordering instructions

To ensure that the motor meets your needs, please specify the following parameters when ordering:

Basic parameters: Motor model, rated power, rated voltage, number of poles, rated frequency
installation environment: Protection class, cooling method, mounting method, rotation direction, environmental conditions, outlet location
Conditions of use: Altitude and working temperature of the installation site, type of load of the motor

if anyspecial requirementIf you have any questions about our products, please feel free to contact us, we need to sign another technical agreement before signing the order contract. You can also directly call our customer service hotline:15902923228 Access to professional guidance.

IV. Warranty Policy Details

1. Warranty period

Simo Motors offersNot more than two years from date of shipmentThe warranty service. Within this specified time period, if the motor is damaged or fails to function properly due to poor manufacturing quality, Simo Motors willRepairing or replacing parts or motors at no cost to the user。

2. Warranty coverage

Warranty covers product quality problems caused by our company, the company will replace the relevant parts or provide free repair.
Warranty services need to be based onProper use and normal maintenanceThe machine should be used correctly in accordance with the original operating manual and maintained, lubricated and cleaned in accordance with the original manufacturer's recommendations.

3. Non-warranty coverage

The following are not covered by the warranty:

由Non-designated maintenance staffDamage caused
Unauthorized modifications or self-disassembly
utilizationUnofficial spare parts or software
Failure to comply with operating manualsPrescribed guidelines for use, handling and maintenance
因natural disaster（Damage to products caused by wind, fire, flood, earthquake, etc.
Natural wear and tear under normal use

V. Post-warranty services

After the expiration of the warranty period, Simo motors provide continuous service support:

Reimbursable services for life: After the expiration of the warranty period, if the product malfunctions, our company implements lifelong paid service, the required wearing parts and spare parts toCost price supply。
(pay a) regular return visit: After-sales service staffFrom time to time, we will make return visits to the usersUnderstand the status of product usage and resolve potential issues in a timely manner.
Professional Repair ServiceThe company undertakes the repair of all kinds of motors, regardless of whether they are under warranty or not, and can provide professional overhaul and maintenance services.

VI. Service commitments and standards

Simo Motors is committed to “Sincerity, thoughtfulness, devotion, Simo will always be attentive.”The “Three Hearts” service concept ensures customer experience through standardized service processes:

Professional Services Team: The company has set up a specialized service team to provide installation guidance, troubleshooting and maintenance services to ensure the efficient operation of the products in the process of use.
Rapid Response Mechanism: The after-sales service team will respond promptly to customer feedback and quickly develop solutions.
Full track record: Detailed records are kept for all service sessions to ensure traceability of the service process and continuous improvement of service quality.

VII. User complaint channels

If you are not satisfied with the services provided by Simo Motors, you are welcome to provide feedback through the following channels:

direct marketingComplaints from Service Department and Headquarters
Call the customer service line:15902923228

We will take every piece of feedback seriously and continue to improve the quality of our services.

concluding remarks

Simo Motors will continue to provide customers withHigh quality products and professional after-sales serviceWe will solve your worries through a perfect service system. We firmly believe that only the success of the customer, the development of Simo. Choosing Simo motor is choosingQuality and Trust。

Simo motors--Service with heart, create the future together!

Simo motorsBrand advantage: excellent quality, leading the motor industry innovation and development

More than sixty years of professional precipitation, to create a benchmark brand in the motor industry

Brand heritage and strength

Simo Motors (former)Xi'an Electric Machinery Factory) was founded in 1955, as China's motor industryleading enterprisesThe company is one of the leading manufacturers of electric motors in the world, with more than sixty years of experience and expertise in the manufacturing of electric motors. The company has now developed intoIntegration of R&D, manufacturing and sales of motor productsOur products are widely used in many important fields such as electric power, coal, petroleum, mining, metallurgy, railroad, transportation, chemical industry, agriculture, water conservancy, aviation and so on.

Simo motors are recognized for theirDeep technical heritage和Continuous spirit of innovationThe company has established an excellent brand image in the motor industry, and its products are exported to more than 40 countries and regions such as North America, Europe, the Middle East, Southeast Asia, Africa, Australia, etc., which are trusted and highly praised by users all over the world.

Core Technology Advantage

1. Leading research and development innovation capabilities

Simo Electric always takes technological innovation as the core driving force of enterprise development:

Professional R&D Team: Has a team ofSenior engineers and technologistsThe R&D team, which is composed of a team of researchers, focuses on the cutting-edge research and application development of motor technology.
Continuous technical investment: invest an annual percentage of sales5%-7% As R&D funding to ensure continuous technological innovation and product upgrades
Patented Technology Achievements: Cumulative access toMore than a hundred national patentsA number of products have won national and provincial awards for scientific and technological progress.
Industry-University-Research Cooperation: Establishing strategic cooperative relationships with many well-known universities and scientific research institutions to jointly promote the development of motor technology.

2. Excellent product quality system

Simo Motors has established a comprehensive quality assurance system to ensure that every motor meets the highest quality standards:

International Standard Certification: Fully adoptedISO9001 Quality Management System Certification、ISO14001 Environmental Management System Certification和OHSAS18001 Occupational Health and Safety Management System Certification
Strict quality control: Implementation from raw material procurement to finished product shipment68 strict quality control proceduresEnsure zero defects in products
Advanced testing equipment: Equipped with international advancedMotor Performance Test System、Vibration Analyzer、Noise test equipmentetc., comprehensive testing of various performance indicators of the motor
Continuous Quality Improvement: Establish a perfect quality feedback mechanism, continuously optimize the production process, and improve product quality and stability.

Product Advantage Characteristics

1. Energy efficient technologies

Simo Motors actively responds to the national energy-saving and emission reduction policy and launches a series of energy-efficient products:

High Efficiency Motor Series: To meet the nationalGB18613-2020 standardEnergy efficiency rating, some products reachIE4, IE5 ultra-high efficiency level
Application of energy-saving technologies: AdoptionHigh Quality Silicon Steel Sheet、Low loss bearings、High efficiency cooling systemetc., significantly reducing operational energy consumption
Intelligent control technology: Supporting the advancedFrequency control systemThe optimal control of the motor operating state is realized, and the energy-saving effect is improved 15%-30%

2. Excellent performance

Simo Motor products are characterized byHigh reliability, long service life, low maintenance costsAnd famous:

Powerful power output: Optimized electromagnetic design solutions to ensure that the motorHigh starting torque and high overload capacity
Low vibration and low noise: AdoptionDynamic balancing process和noise reduction technologyThe vibration and noise values are better than the national standards.
Highly adaptable to the environmentProduct design takes into account all kinds of severe working conditions, withResistant to high temperature, humidity and corrosionand other properties
Long life design: The key components are made of special treatment and high quality materials, and are designed to last up to100,000 hoursthat amount or more

3. Complete product range

Simo Motors offers a comprehensive range of products to meet the needs of different customers:

High voltage motorsrange: Voltage level coverage6kV, 10kVMultiple ratings, power range200-10000kW
Low Voltage Motor Series:: IncludesYX3, YE3, YE4and other series, power range0.55-1000kW
Explosion-proof motorsrange: ByNational explosion-proof certificationFor use in flammable and explosive hazardous areas
Specialized motor series: Developed for specific industry needsSpecialized for coal mine, metallurgy, and shipsSpecialty motors
Non-standard customization capability: Strong customization and development capability, according to the customer's needsPersonalized Solutions

Service System Advantage

Simo Motor has established a comprehensive customer service system:

pre-sales technical support: Provide professional selection guidance, program design and product demonstration
Intimate service during the sale: Strict contractual performance, ensuring on-time delivery and providing installation guidance
Comprehensive after-sales protection：24 months warranty，7×24 hours technical support，48-hour on-site servicepromise
Lifetime maintenance support: Establish customer equipment files and provide full life-cycle service support

Industry Application Advantages

Simo motors have accumulated a wealth of application experience in a number of key industries:

Power industry: Provide supporting motors for thermal power, hydropower and nuclear power, with stable and reliable operation.
coal industry: Explosion-proof motor products passed the coal mine safety certification, safety recognized by the industry
petrochemicalsCorrosion-resistant, explosion-proof special motors to adapt to the harsh working conditions and ensure safe production.
Metallurgical industry: High overload capacity, high temperature resistant motors to meet the special needs of metallurgical equipment
Transportation: Specialized motor solutions for railroads, rail transit, ports, etc.

Brand Honors and Certifications

Simo motors have won many honors for their excellent product quality and good market performance:

China Famous Brand Products、National Inspection-free Products、China Famous Trademarks
High-tech enterprises、Provincial Enterprise Technology Center
A number of products won the provincial and ministerial-level scientific and technological progress awards
Contract and Trustworthy Enterprise、Quality and reputation AAA grade enterprise

concluding remarks

Choosing Simo motors is choosingReliable quality assurance、Leading Technical Strength和Complete service supportSimo Motors is a leading manufacturer of electric motors in China. With more than sixty years of professional accumulation, Simo motors have a profound technical background and rich industry experience, and are able to provide customers in various industries with the best quality motor products and perfect power solutions.

In the future, Simo Motor will continue to uphold the "Quality-oriented, innovation-driven, customer first"business philosophy, and constantly improve the level of product technology and quality level, to create greater value for customers, and make greater contributions to the development of China's motor industry.

Simo motors - strong power, excellent energy efficiency and perfect service!
